SCS: Self-Clinching Fasteners

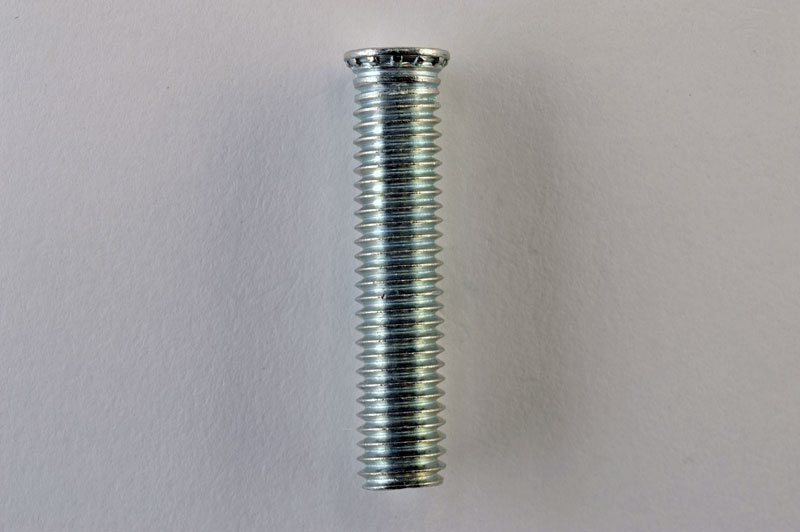

The FSUK Self-Clinch studs is designed to be flush into a range of sheet metal without any need for welding. The studs are available in a variety of thread sizes and lengths. The FSUK Self-Clinch studs persuades material from the mating sheet to flow around the self clinch groove and notches. The steel studs are hardened and designed to go into sheet less than 80 Rockwell B, the stainless version is designed to go into less than 70 Rockwell B. It is designed to be installed into drilled or punched holes and must always be installed using a squeeze action. The tolerance on the hole must be -0.00 + 0.08mm
SUITABLE FOR USE IN DRILLED OR PUNCHED HOLES HEAD IS DESIGNED TO BE INSTALLED FLUSH WITH THE SHEET AVAILABLE IN STEEL AND STAINLESS STUD WILL ALWAYS BE INSTALLED PERPENDICULAR TO PANEL NO WELDING REQUIRED

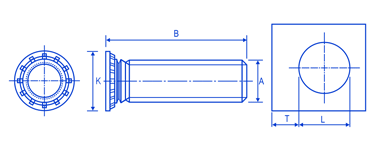

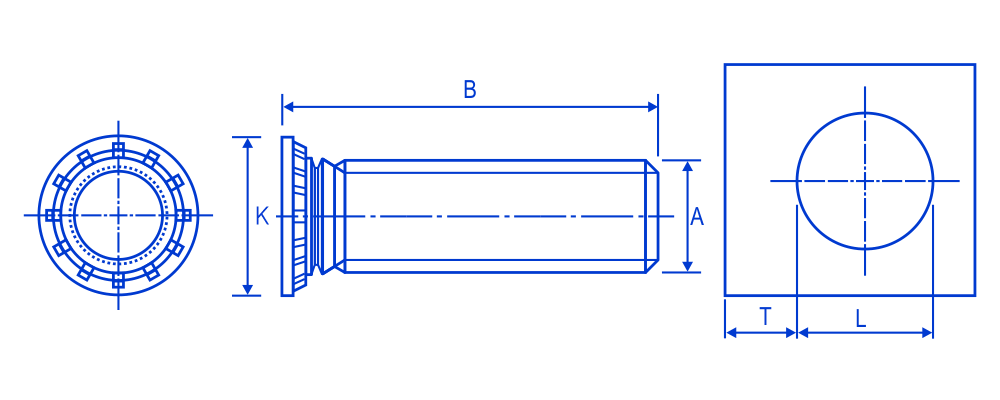

HEAD TOLERANCE +/- 0.4mm
HOW TO SPECIFY: THREAD SIZE X LENGTH STEEL TRIVALENT FINISH OR STAINLESS.
IE FSUK M4-10 STEEL TRIVALENT
PLEASE NOTE LENGTHS(B) AVAILABLE AS FOLLOWS:
PLEASE CHECK WITH FSUK FOR AVAILABILITY OVER 30 LONG
PRODUCT IS AVAILABLE IN STEEL TRIVALENT FINISH, GEOMET 500 (ONLY SOME SIZES) AND STAINLESS
MOST SIZES EX STOCK
click HERE for a PDF version of this brochure page
Most sizes available from stock contact fsuk for further info.
