HPS: Self-Clinching Fasteners

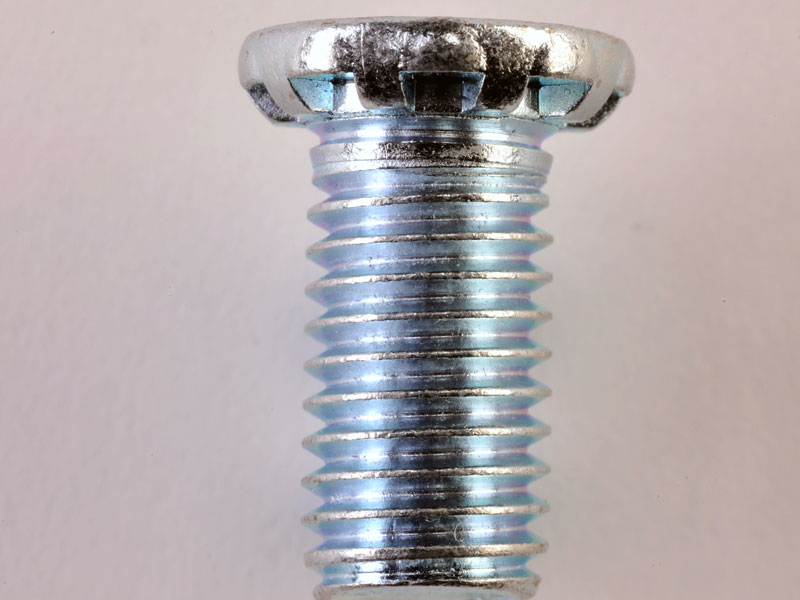

The FSUK high-performance studs are available for applications where a flush head is not required and a very high performance is. The FSUK Self-Clinch studs persuades material from the mating sheet to flow around the self clinch groove and notches. The steel studs are hardened and designed to go into sheet less than 80 Rockwell B. It is designed to be installed into drilled or punched holes and must always be installed using a squeeze action. The tolerance on the hole must be -0.00 + 0.13mm.
SUITABLE FOR USE IN DRILLED OR PUNCHED HOLES STUD WILL ALWAYS BE INSTALLED PERPENDICULAR TO PANEL NO WELDING REQUIRED HIGH TORQUE RESISTANCE
HOW TO SPECIFY:
FSUK SCHPS M8-20 (B) STEEL TRIVALENT
SOME SIZES AVAILABLE IN STAINLESS- PLEASE CLICK ON THE CONTACT US @ FSUK AND PLACE ENQUIRY TO CHECK AVAILABILITY
click HERE for a PDF version of this brochure page
Most sizes available from stock contact fsuk for further info.
